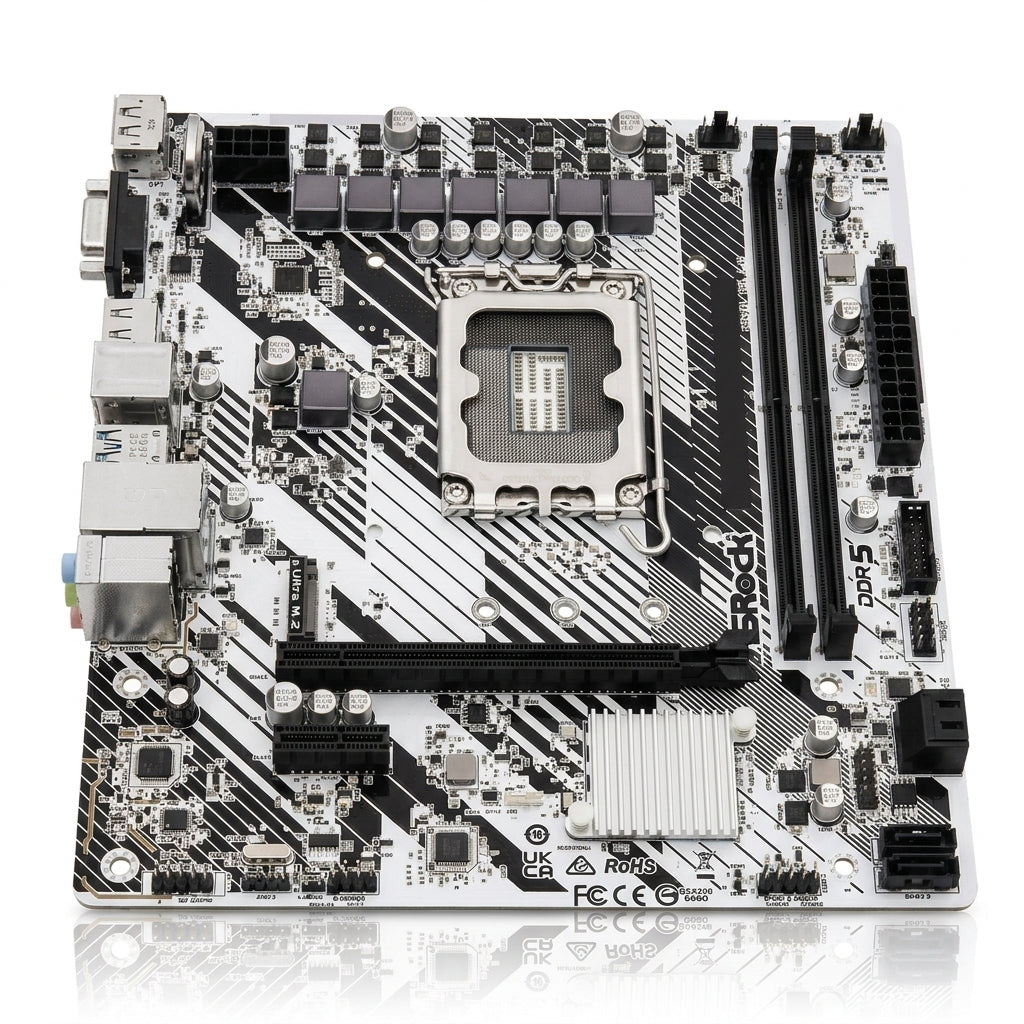

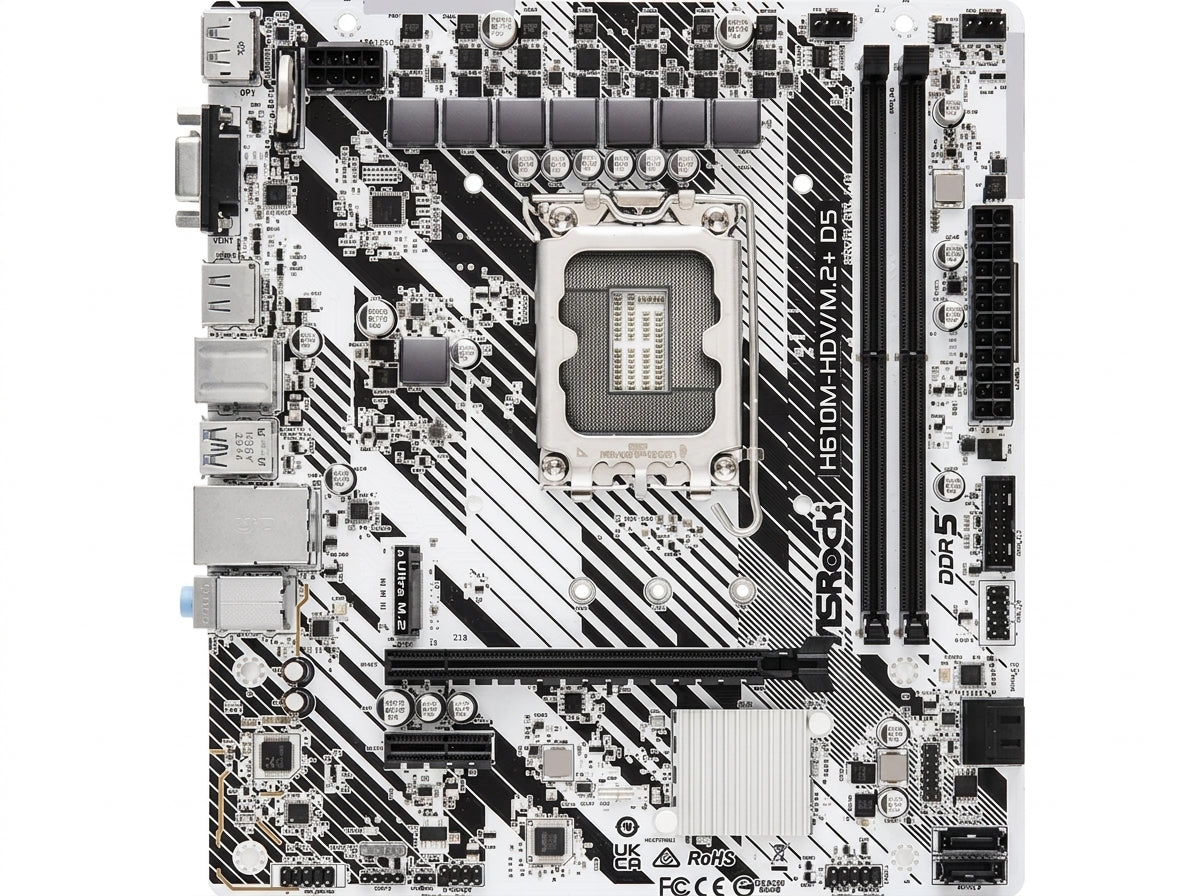

ASRock H610M-HDV/M.2+ D5 Micro-ATX Motherboard | Intel LGA1700 (14th/13th/12th Gen), DDR5 Up to 5600MHz, PCIe 4.0 x16, Ultra M.2 NVMe, USB 3.2 Gen1 Type-C, Triple Display (HDMI/DP/D-Sub), Gigabit LAN

Description

Build a reliable, modern desktop setup with the ASRock H610M-HDV/M.2+ D5 Micro-ATX Motherboard. Engineered for Intel LGA1700 socket processors—fully supporting 14th, 13th, and 12th Gen Intel Core CPUs—this motherboard bridges next-generation performance with budget-friendly efficiency. Equipped with high-speed DDR5 memory support up to 5600MHz and a robust 6+1+1 power phase design, it guarantees smooth power delivery and responsive multitasking.

The board features a high-speed PCIe 4.0 x16 expansion slot for modern graphics cards, a PCIe Gen3 x4 Ultra M.2 slot for NVMe SSDs, and versatile rear connectivity including a USB 3.2 Gen1 Type-C port. With flexible triple-display output options (HDMI, DisplayPort, and D-Sub/VGA), Polychrome RGB synchronization, and ASRock Auto Driver Installer, the H610M-HDV/M.2+ D5 is an exceptional foundation for gaming, office, and home builds.

Key Features & Benefits

• Broad Intel CPU Compatibility: Supports 14th, 13th, and 12th Gen Intel Core processors on the LGA1700 socket with Intel Hybrid and Turbo Boost Technologies.

• Next-Gen DDR5 Performance: 2x DDR5 DIMM slots support up to 96GB capacity and speeds up to 5600MHz with Intel XMP 3.0 support for faster data throughput.

• Rock-Solid 6+1+1 Power Phase: Delivers clean, stable voltage regulation to the CPU for enhanced system stability during heavy workloads.

• High-Speed Storage & Expansion: Equipped with 1x Ultra M.2 (PCIe Gen3 x4 @ 32 Gb/s) NVMe slot, 4x SATA3 6.0 Gb/s ports, and 1x PCIe 4.0 x16 slot for dedicated GPUs.

• Triple Display Outputs: Supports multi-monitor setups with onboard HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (up to 8K@60Hz), and D-Sub (VGA) ports.

• Modern Rear I/O with USB Type-C: Includes a reversible rear USB 3.2 Gen1 Type-C port alongside USB 3.2 Gen1 Type-A and USB 2.0 ports.

• Polychrome RGB Sync: Features an addressable ARGB LED header to customize and synchronize lighting across compatible coolers, fans, and LED strips.

• ASRock Auto Driver Installer: Automatically detects and installs required network and hardware drivers on first boot with zero optical drive needed.

Technical Specifications

• Brand / Model: ASRock H610M-HDV/M.2+ D5

• Form Factor: Micro-ATX (22.0 cm x 19.3 cm / 8.66" x 7.6")

• Chipset: Intel H610

• CPU Socket: LGA1700 (Supports 14th, 13th & 12th Gen Intel Core Processors)

• Power Design: 6+1+1 Power Phase

• Memory Support:

  • 2x DDR5 DIMM Slots (Dual-Channel Architecture)

  • Supports DDR5 Non-ECC, Un-buffered up to 5600MHz

  • Max Capacity: Up to 96GB

  • Supports Intel Extreme Memory Profile (XMP) 3.0

• Expansion Slots:

  • 1x PCIe 4.0 x16 Slot (PCIE1 mode)

  • 1x PCIe 3.0 x1 Slot

• Storage Interfaces:

  • 1x Ultra M.2 Socket (Key M, Type 2242/2260/2280, PCIe Gen3 x4 up to 32 Gb/s)

  • 4x SATA3 6.0 Gb/s Ports

• Rear Panel I/O:

  • 1x HDMI 2.1 (Up to 4K 60Hz)

  • 1x DisplayPort 1.4 (Up to 8K 60Hz)

  • 1x D-Sub (VGA) Port

  • 1x USB 3.2 Gen1 Type-C Port

  • 1x USB 3.2 Gen1 Type-A Port

  • 4x USB 2.0 Ports

  • 1x RJ-45 LAN Port (Realtek Gigabit LAN)

  • 1x PS/2 Keyboard/Mouse Port

  • 3x HD Audio Jacks (Line In / Front Speaker / Microphone)

• Internal Headers: 1x Addressable LED Header, 1x CPU Fan Connector, 1x Chassis/Water Pump Fan Connector, 1x USB 3.2 Gen1 Header (supports 2 ports), 1x USB 2.0 Header (supports 2 ports)

• Audio Codec: Realtek ALC897 7.1-Channel High Definition Audio

• OS Support: Microsoft Windows 11 (64-bit) / Windows 10 (64-bit)
